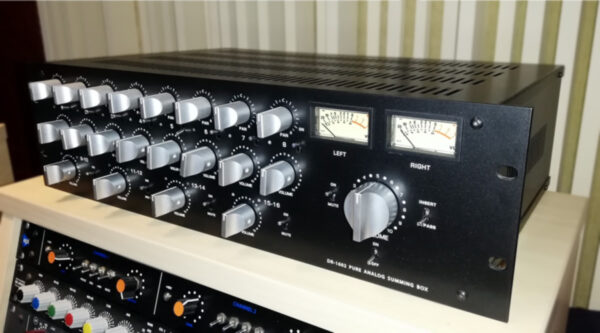

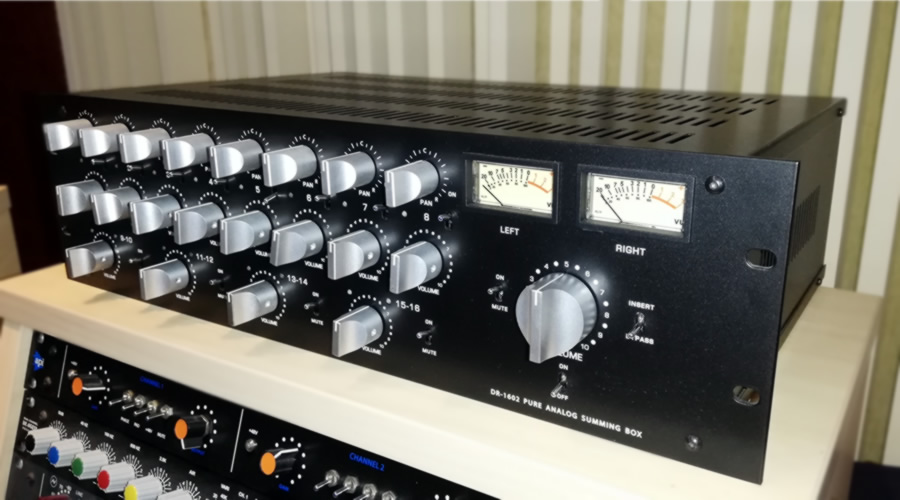

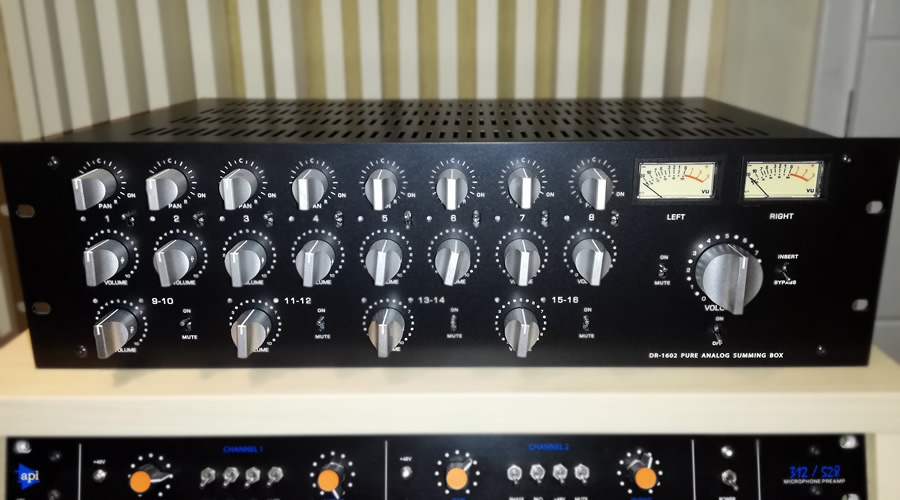

DR-1602 – Summing Mixer

290,00

The DR-1602 provides the analog API* Summing style of 16 inputs in a 3U rack space through discreet 2520* amps. This is how the DR-1602 mixer gets powerful and punchy sound!

DIY level: LOW MID PRO



3 in stock

Category: SKU: DR-1602

Description

DR-1602 – 16ch. Summing Mixer

API* Summing | Depth in your mixes

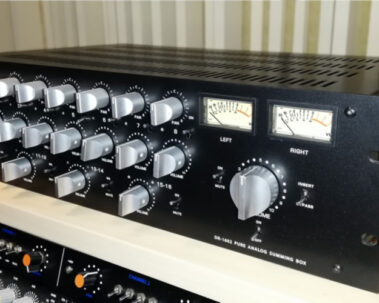

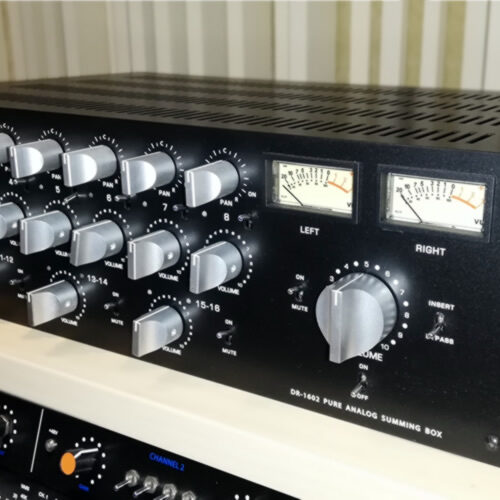

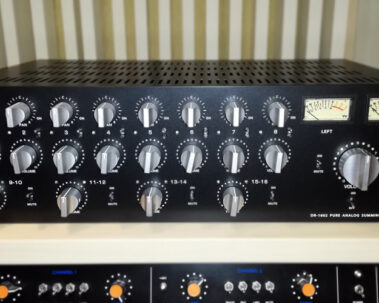

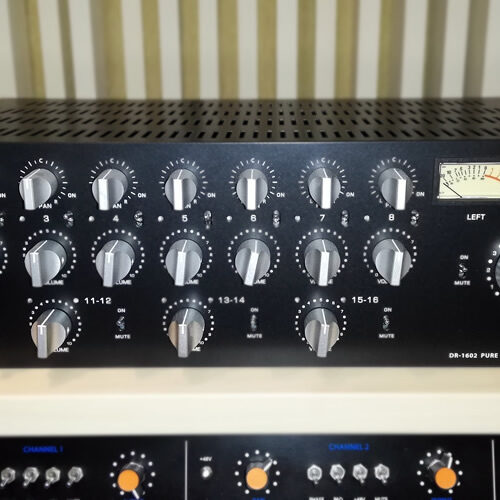

The DR-1602 provides API* Summing style on 16 inputs in 3U rack space and features a Level control, Panning + Master control Knob. Each channel has a balanced input which is enhanced with discrete amplifier and direct output, Level Control / Pan / Mute – on first 8ch. & Level Control / Mute – on the last 8ch which are in 4 stereo pairs – making this the perfect mixer for any line level application. Mixer has also 16ch. of direct outputs. Master section has double VU metering plus the stereo insert and 2 pairs of stereo outputs. Each output channel goes through 2 different transformers and through discrete amplifiers (DOA). This is how the DR-1602 get it’s powerful and punchy sound.

DIY Experience level: LOW MID PRO

Features

  • 16 Balanced Inputs & Direct Outs
  • Level Control / Pan / Mute on 1-8 ch.
  • Level Control /  Mute on last 8 ch.
  • Peak/Signal led indicators on all ch.
  • Master VU Meter option

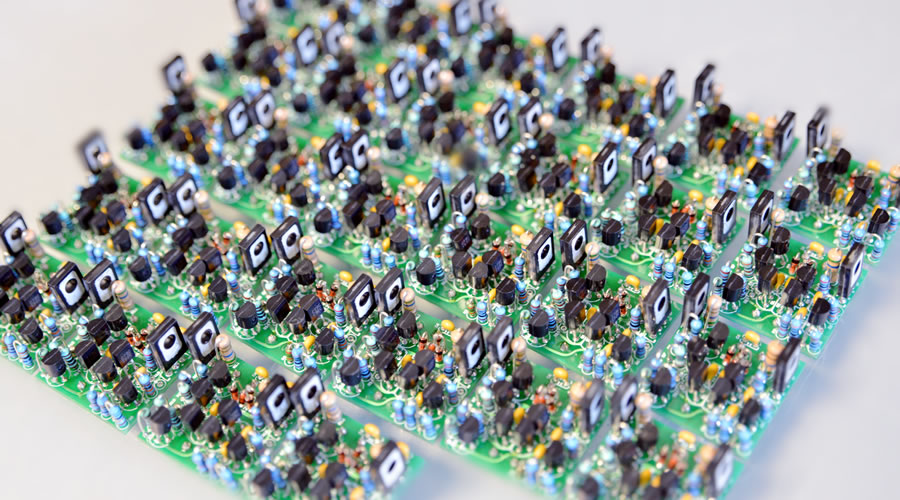

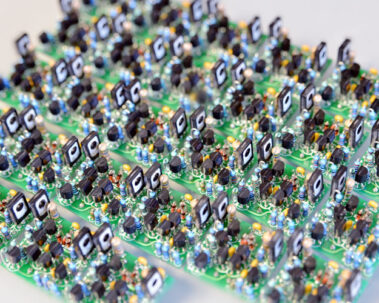

  • 2520 DOA on all 16 channels
  • INSERT in master section
  • 4 output transformers
  • 4 DOA on outputs
  • D-sub Interface connections
  • ACA API* Summing AMP (Capi)
  • Master Fader

What we offer:

PARTIAL DR-1602 KIT – (290€)

• 3U DR-1602 fully ready case

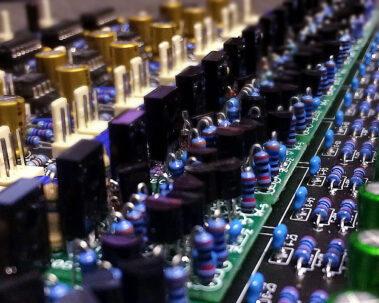

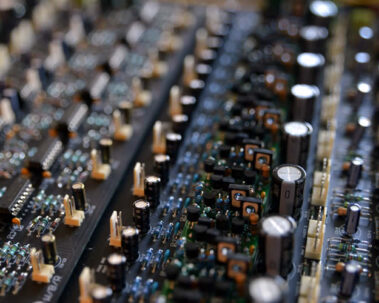

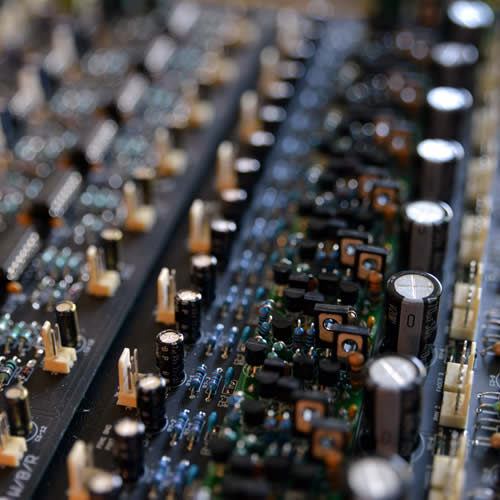

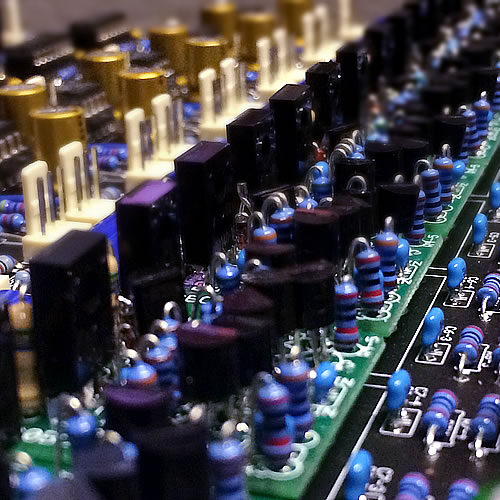

• 2 x 8ch MIXER PCB (all 16ch)
• INSERT PCB (for master section)

EXTERNAL PSU KIT – (65€)

• PSU CASE / PCB / PSU toroid

TOTAL PROJECT (KIT + BOM)

ESTIMATION – 1800€

PRICE: EUR
290,00

STOCK QTY: 3

PRICE: EUR
65,00

STOCK QTY: 2

PRODUCT INFORMATION

Unique Highlights

  • API* Style Summing

    We all know that special things can happen when using these summing mixers in their non-traditional roles. To that end, DIY-Racked ensured that you get an immaculate API* inspired end to end replica which became legendary tool in studios all over the world.

  • Get Professional!

    The DR-1602 is not only a part of the best selling DIY-Racked product line, but a key unit in making your tracking and mixing sessions as professional as they can be.

DR-1602 - Specifications

  • 16 Balanced Inputs & Direct Outs
  • Level Control / Pan / Mute – on first 8 ch.
  • Level Control /  Mute – on last 8 ch.
  • Peak/Signal led indicators – on all 16 ch.
  • Master VU Meter option
  • 2520 DOA on all 24 channels
  • INSERT in master section
  • 4 output transformers
  • 4 DOA on outputs
  • D-sub Interface connections
  • ACA API* Summing AMP (order from capi)
  • Master Fader

*All brand names marked with “*” such as for example “Neve Electronics”, “SSL”, “Pultec” or other respective brand names marked with * are in no way associated or affiliated with DIY-Racked. These trademarks of other manufacturers are used solely to identify the products of those manufacturers whose sounds were studied during the development of our products.

Additional information

Weight 3.9 kg
