DUAL LA-2A CASE

160,00

The DUAL LA-2A PTP CASE is meant to be used with PCBs. These PCBs are made and offered by Silent Arts.

DIY level: LOW MID PRO



3 in stock (can be backordered)

Category: SKU: LA-2A-DUAL-CASE

Description

DUAL LA-2A CASE

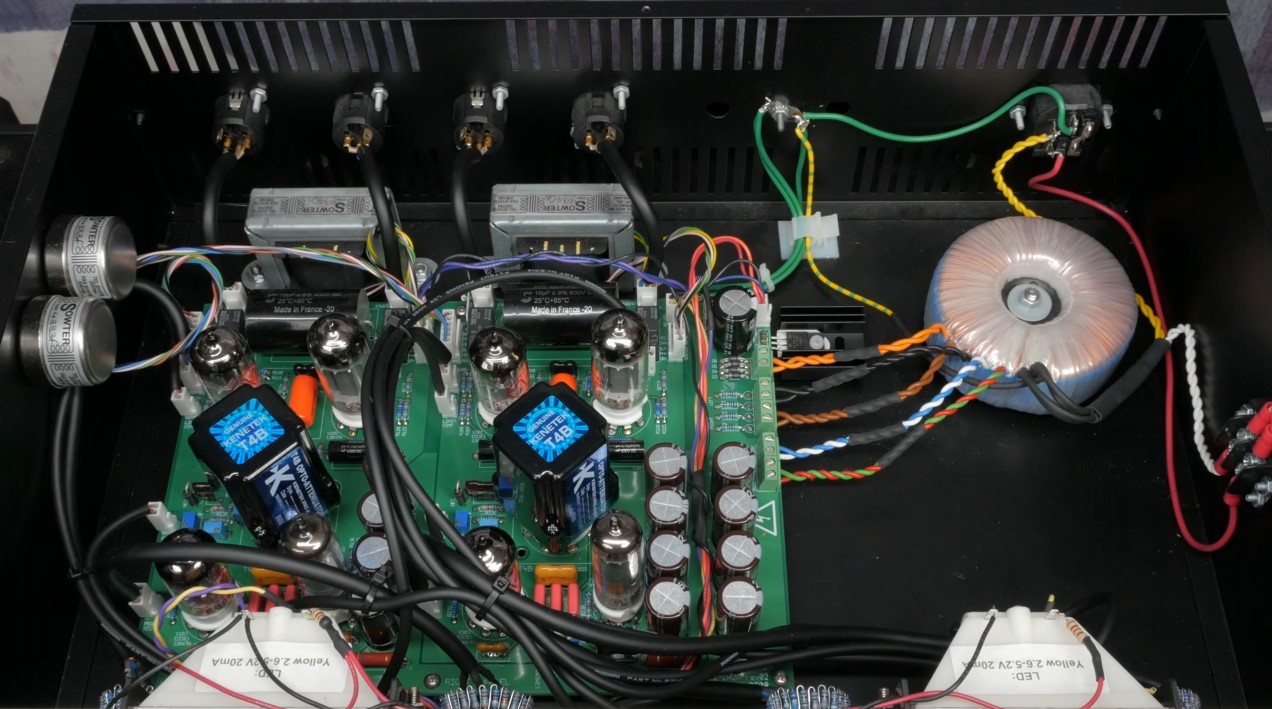

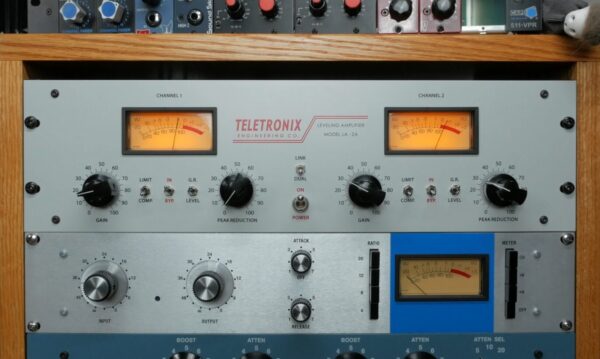

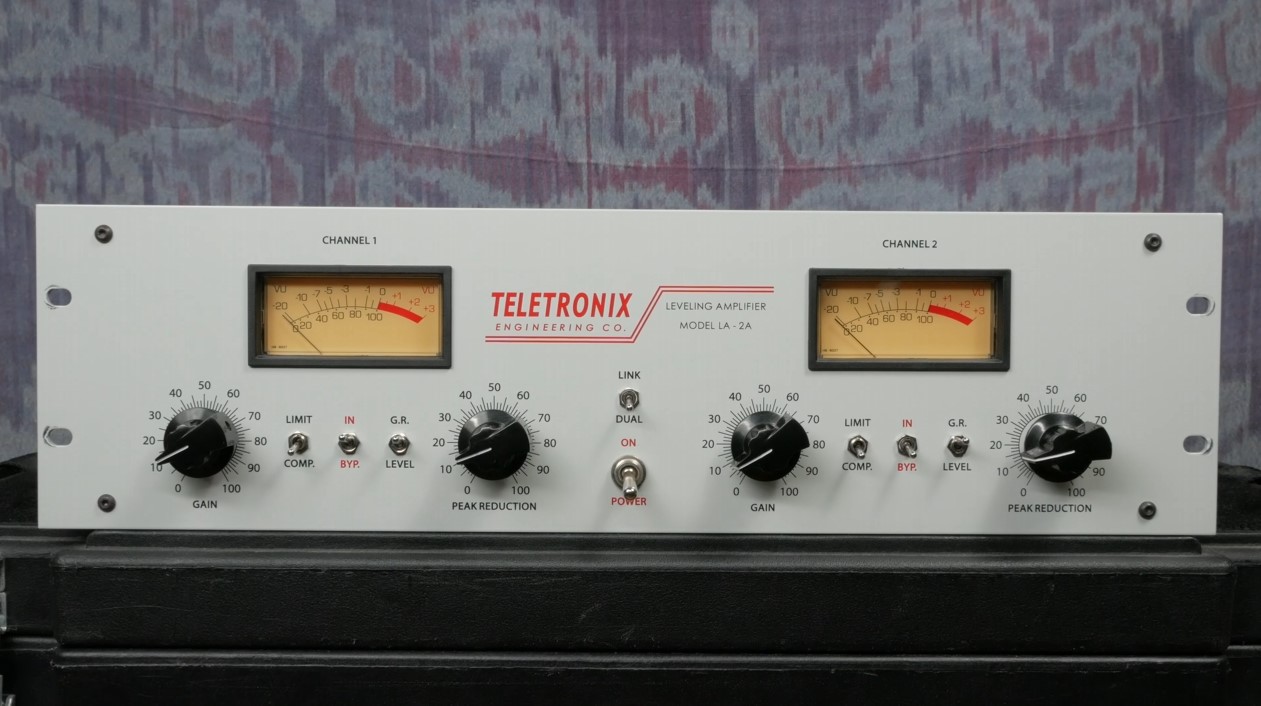

Case for Dual LA-2A project (Silent Arts version)

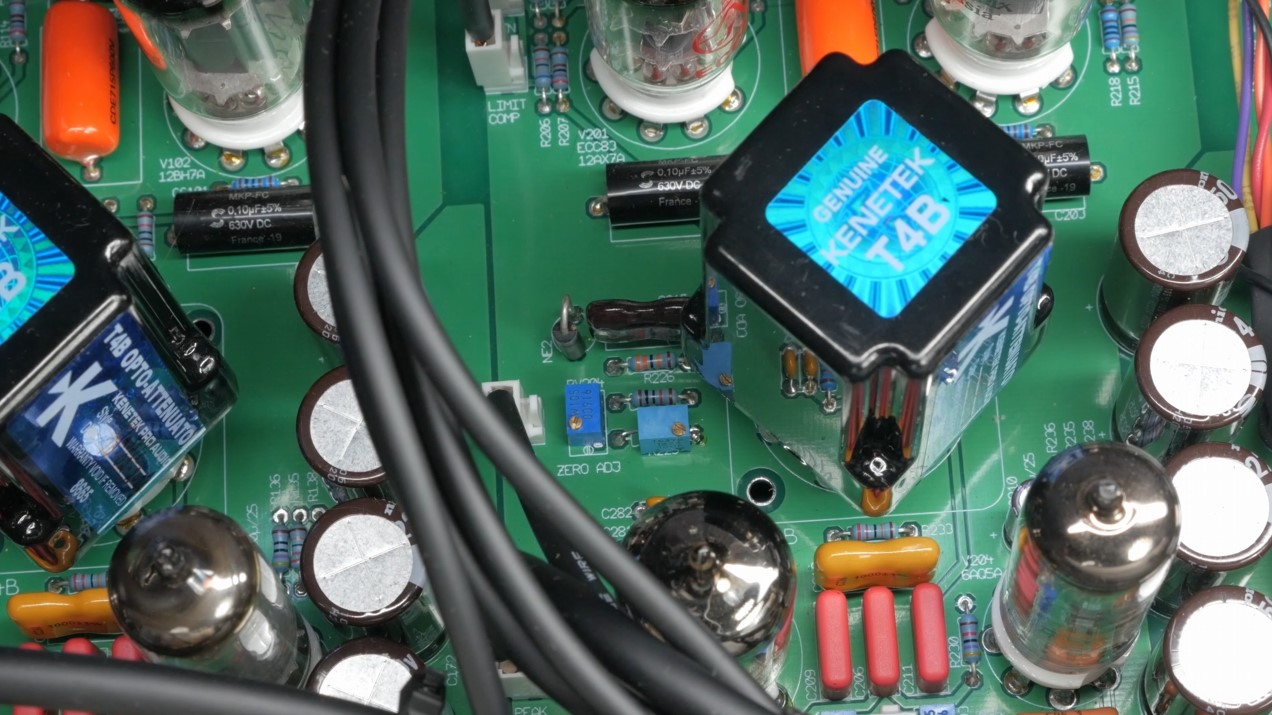

The LA-2A Levelling Amplifier is a vintage audio compressor invented in the early 1960s. It is one of the most popular compressors known in the audio world! The LA-2A was originally a hand-wired, tube-based compressor. It uses an electro-luminescent panel together with a light dependent resistor to provide gain reduction, which in the LA-2A’s own terminology is called the T4 cell. The properties of the T4 give the LA-2A its unique character by making it an entirely program dependent design.

DIY Experience level: LOW MID PRO

Features

  • Peak-Reduction control
  • Gain Control make-up
  • Limit/Compress switch
  • Input metering (VU)
  • Gain reduction (VU)
  • Output levels (VU)

What we offer:

  • DUAL LA-2A CASE – 160€

TOTAL PROJECT (CASE + BOM)

ESTIMATION – 1500€+

IN STOCK: 3

PRICE: EUR
160,00

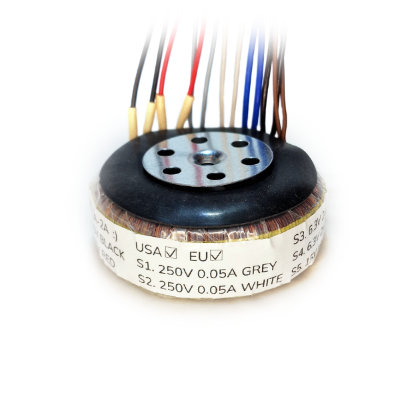

DUAL LA-2A POWER TOROID

Features

  • Primary 115V                BLACK
  • Primary 115V                RED
  • Secondary 250V 0,05A GREY
  • Secondary 250V 0,05A WHITE
  • Secondary 6.3V 2A      BLUE
  • Secondary 6.3V 2A    BROWN
  • Secondary 9V 1A         GREY

IN STOCK: 5

PRICE: EUR
95,00

PRODUCT INFORMATION

DUAL LA-2A CASE - Specifications

  • 3U CASE, 305mm deep, with vented top
  • Front panel cut out is ready for Sifam AL29WF meters
  • Back panel cut outs fit D type XLR, IEC with fuse
  • LA-2A warms things up!
  • It’s a go to compressor for vocals!
  • Gets your mix fatter and bigger!

*All brand names marked with “*” such as for example “Neve Electronics”, “SSL”, “Pultec” or other respective brand names marked with * are in no way associated or affiliated with DIY-Racked. These trademarks of other manufacturers are used solely to identify the products of those manufacturers whose sounds were studied during the development of our products.

Additional information

Weight 4,3 kg
